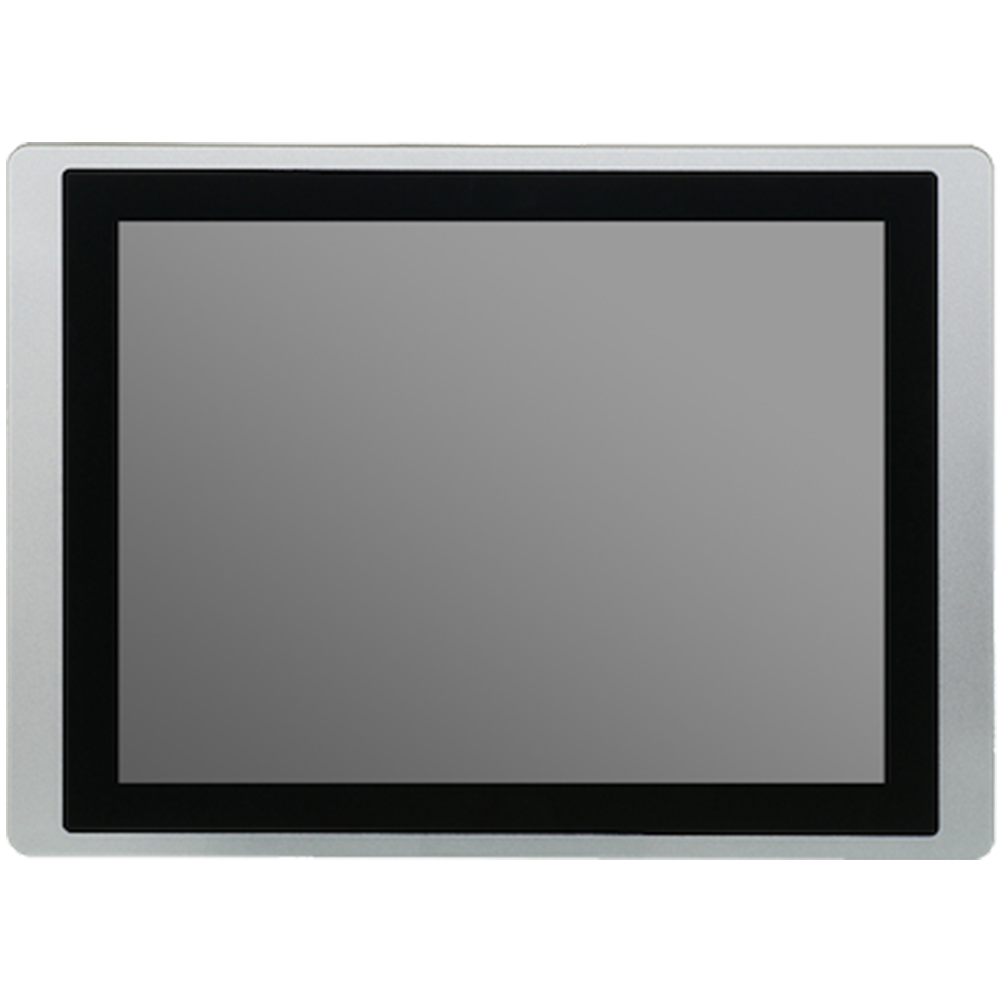

SERIE PT2 (PT2150-51ST)
SERIE PT2 (PT2150-51ST)
Caratteristiche
| Dimensione | 15.0″ – (4:3) |
| Risoluzione | 1024×768 |
| Memoria | 64MB |
| Retentiva | 128KB |
| COM1 | RS232 |
| COM2 | RS422/485 |
| COM3 | RS485 |
| Porte USB | 1 Client – 1 Host |
| Ethernet | Sì |
| Micro SD | – |
| Certificazione UL | UL61010 |
Display
| Type | TFT LCD |
| Colors | 65 K |
| Brightness | 350 cd/m² |
| Backlight | LED |
| LCD Life | 50000 hours |
| Touch Panel | 4-line industrial resistive touch screen |
| CPU | RISC ARM9 32bit 300MHz |
| Application Memoy | About 40MB |
| Real Time Clock (RTC) | Built in (Unchargeable Battery type,5 years battery life) |
| Ethernet | 1-line 10M/100M suitable |
| USB Port | 1 USB Slave 2.0 port, 1 USB Host 2.0 port |
| Download Project | USB Slave/U-disc /Ethernet |
Energia
| Supply Voltage | 24Vdc, ±10% |
| Consumption | 20 W |
Dimension
| Dimension WxHxD (mm) | 399.1 x 297.6 x 57.5 mm |
| Cutout Dimension WxH (mm) | 384.5 x 283.0 mm |
| Net Weight (kg) | 3000 g |
